Tunnel

Establish tunnels to different countries

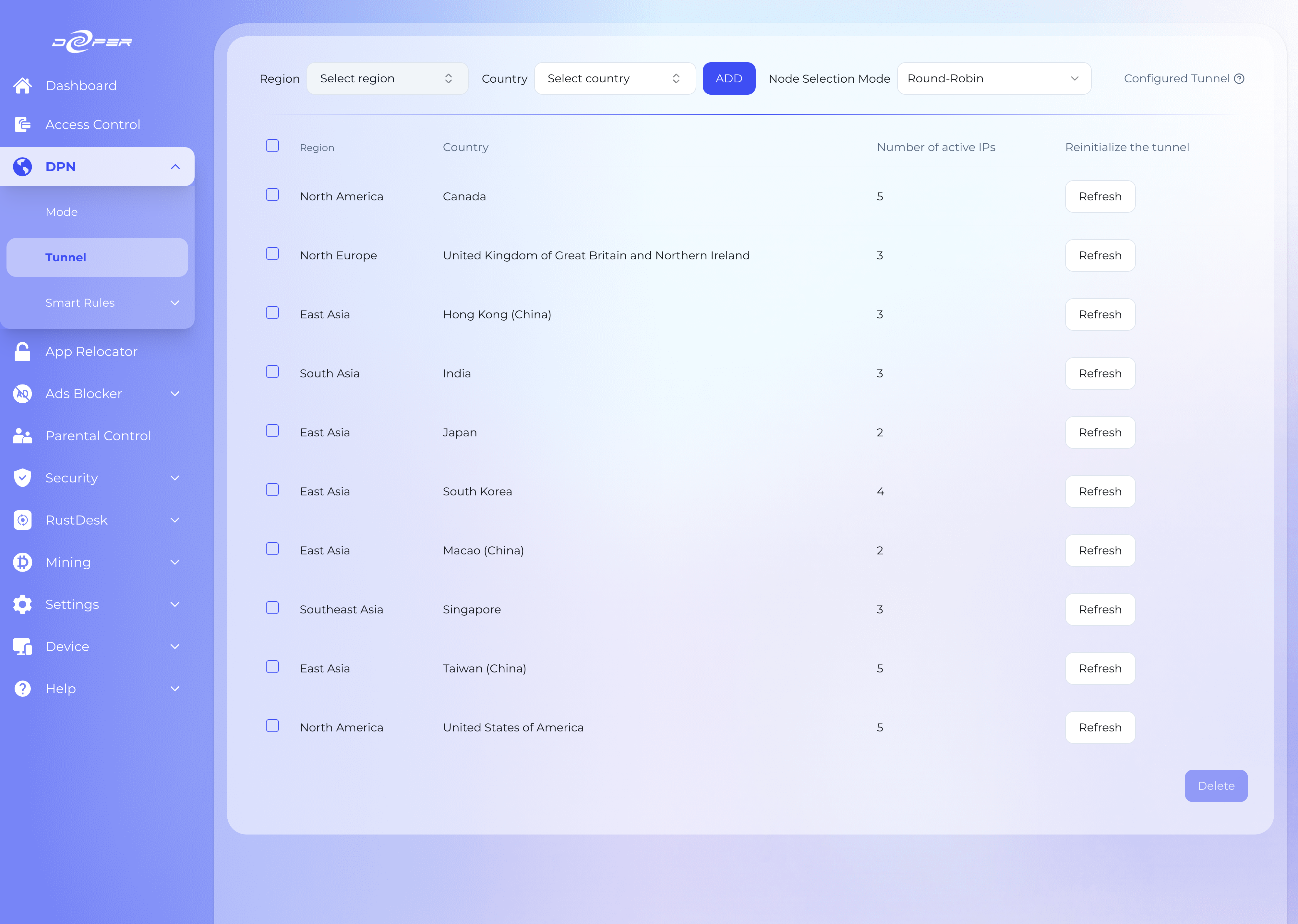

AtomOS Tunnel Page

The tunnels page is used to add and delete tunnels, as well as list the available nodes within the added tunnels. It provides the ability to switch and refresh tunnel nodes.

Note: A maximum of 15 tunnels can be simultaneously established in different countries or regions, and each tunnel supports up to 3 connected nodes.

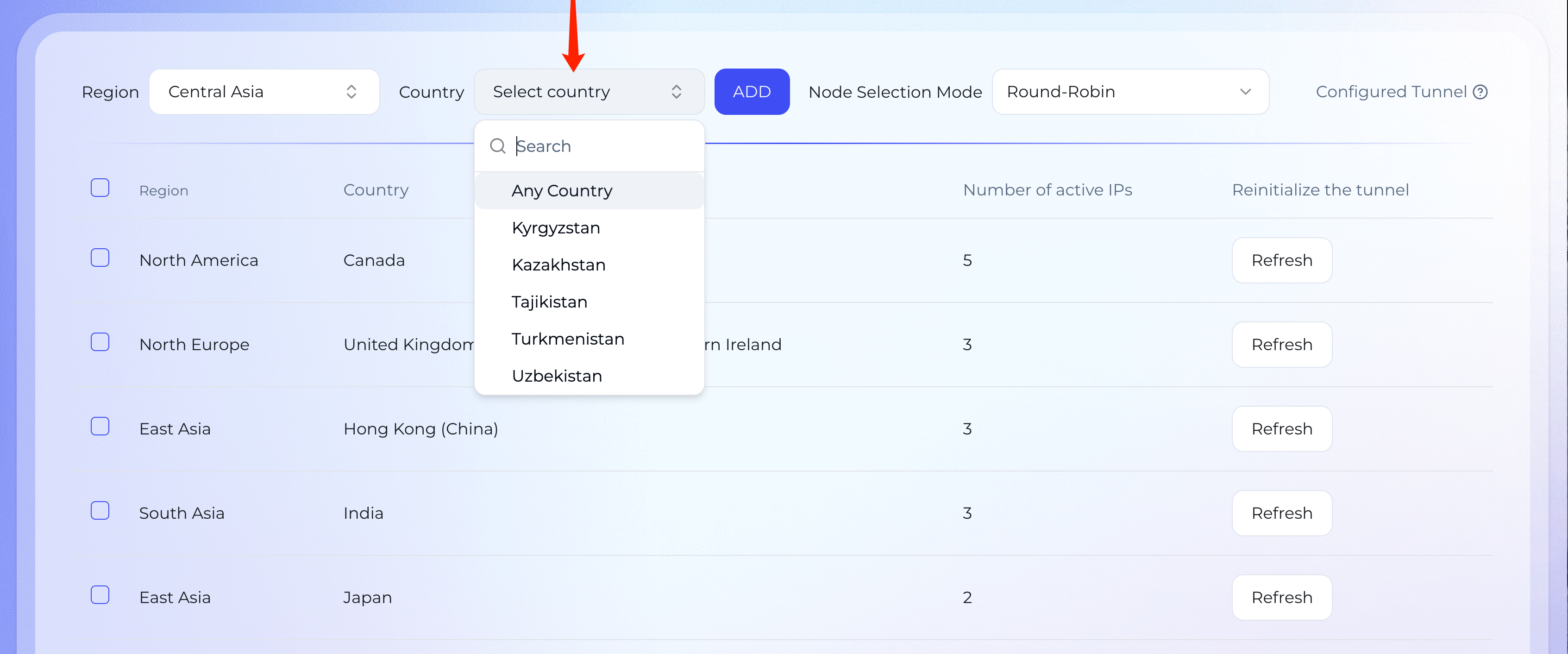

First- Select a Region
Second- Select a Counrtry

When creating a new tunnel, please select the region first, then the country, and click "ADD" to add a tunnel.

Node Selection

Node Selection Mode is the load balancing of DPN nodes and provides multiple modes.

Regular Node Mode: Delete Tunnles

To delete one or multiple tunnels, select the tunnels and click "Delete" to complete the deletion.

Tips for the usage of tunnels:

  • When experiencing slow speeds on a specific tunnel, please click "Switch active IP" and wait for 3-5 seconds to complete the switch. Note: After switching, the browser may require some time to automatically use the new tunnel IP. This button only appears in Regular Node Mode.

  • Click "Refresh" to connect different sets of nodes within the tunnel. Note: When there are less than 2 nodes available in a tunnel, the nodes cannot be refreshed.

  • When encountering a prompt that the tunnel is being used, please check whether the config is manually added in the Routing and the tunnel of the country is being used in the App Relocator.
