Access Control

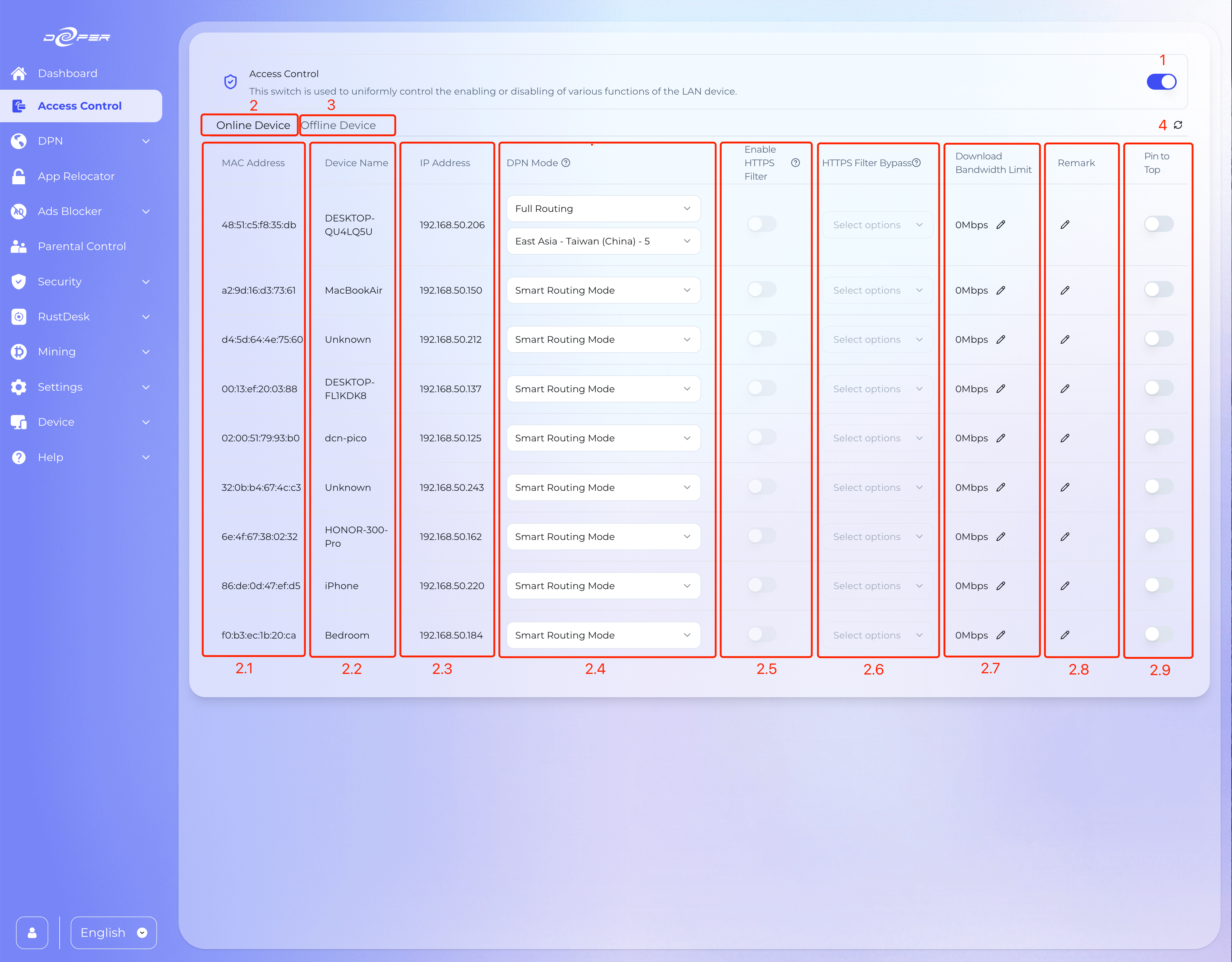

This function is used to uniformly control the opening or closing of various functions of LAN devices protected by DeeperConnect.

1. The switch button allows the user to turn on or off access control

2. All online access devices will be displayed in this panel

2.1 MAC address used by the access device

2.2 Default name of the access device

2.3 LAN IP address used by the access device

2.4 DPN mode setting for the access device

2.5 Open or close the https filter of the access device

2.6 Traffic flow control of the access device

2.7 Name notes of the access device

2.8 Set the access device to the top of the panel

3. All offline access devices will be displayed in this panel

4. Refresh the device list
